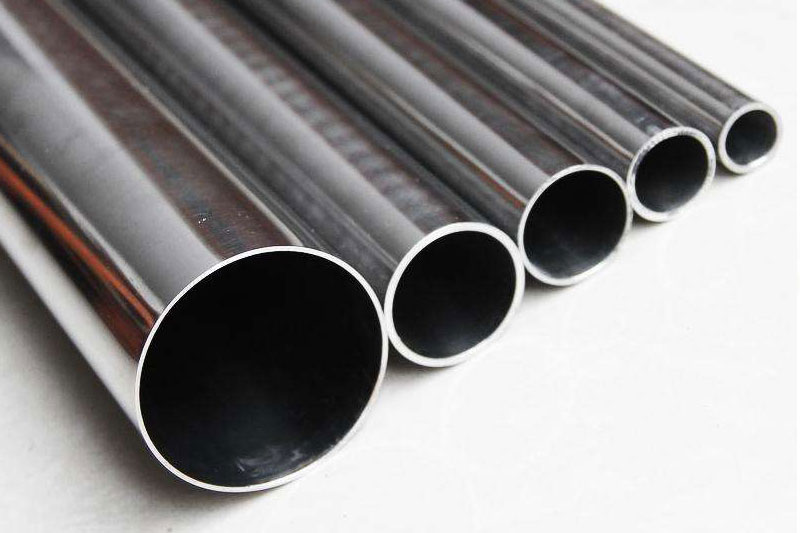

201 Stainless steel Tube manufacturer
201 stainless steel, has a certain acid resistance, alkali resistance, high density, polishing no bubble, no pinhole and other characteristics, is the production of all kinds of watchcase, watchband bottom cover quality materials. Mainly used for decorative pipe, industrial pipe, some shallow stretching products.
201 Stainless steel tube Price in China ,Manufacturer of 201 Stainless Steel tube
Because the 201A stainless steel belt is only slightly harder than 304, the elongation is worse than 304, deep drawing and deep drawing will crack, but in the decorative welded pipe industry, these do not affect the use, after a short time after polishing indoor rust, the same as 304 no magnetic
201 stainless steel pipe is acid – and alkali-resistant
steel pipe prepared for round steel.
201 stainless steel
tube has: acid resistance, alkali resistance, high density,
no pinhole and other characteristics, is the production of
all kinds of watchcase, watchband bottom cover quality
materials.
201 stainless steel pipe can be used in
decorative pipe, industrial pipe, some shallow tensile
products used.
Equivalent Material of 201 Stainless Steel Tube
| Grade | UNS No. | Old British | Euronorm | China GB | Japanese JIS | ||
| BS | EN | No. | Name | ||||
| 201 | S201 | 201S15 | 58E | 1.4372 | 12Cr17Mn6Ni5N | 12Cr17Mn6Ni5N | SUS201 |
Standard Specification Of ASTM A240 Type 201 Tube
| Specifications | ASTM A240 / ASME SA240 | ||||||
| Thickness | 0.5mm-100mm | ||||||
| Outer diameter | 10mm, 25.4mm, 38.1mm, 50.8mm, 100mm, 250mm, 300mm, 350mm, etc | ||||||
| Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc | ||||||
| Surface | 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sand blast, Brush, etching, etc | ||||||
| Finish | Hot rolled (HR), Cold rolled Tube (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) | ||||||
| Form | Round tube Square tube Rectangular tube etc. | ||||||
201 Ruond Tube Composition and Mechanical Characteristics
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
| 201 | Min. Max. |
/ 0.15 |
5.5 7.5 |
/ 1.0 |
/ 0.06 |
/ 0.030 |
16.00 18.00 |
/ | 3.50 5.50 |
/ 0.25 |
| Grade | Tensile
Strength (MPa) |
Yield Strength 0.2% Proof (MPa) |
Elongation (% in 50mm) |
Hardness | |
| Rockwell B (HR B) |
Brinell (HB) |
||||
| 201 | 520 | 275 | 55 | 183 | 201 |
Common Types Of 201 Stainless steel Tube
-
201 Stainless steel Tube
-
201 Stainless steel Tube
-
201 Stainless steel Tube
Dimensions Standard,weight chart and size schedules of 201 stainless steel Tube
| SS 201 Tube Size（mm) | SS201 Tube Weight per Unit Area（kg/m） | |||
| 6*1 | 0.125 | |||
| 6*1.5 | 0.168 | |||
| 8*1 | 0.174 | |||
| 8*1.5 | 0.243 | |||
| 10*1 | 0.224 | |||
| 10*1.5 | 0.318 | |||
| 12*1 | 0.274 | |||
| 12*1.5 | 0.392 | |||
| 12*2 | 0.498 | |||
| 14*1 | 0.324 | |||
| 14*2 | 0.598 | |||
| 14*3 | 0.822 | |||
| 16*2 | 0.697 | |||
| 16*3 | 0.971 | |||
| 17*3 | 1.046 | |||
| 18*1 | 0.423 | |||
| 18*1.5 | 0.617 | |||
| 18*2 | 0.797 | |||
| 18*3 | 1.121 | |||
| 20*1 | 0.473 | |||
| 20*2 | 0.897 | |||
| 20*3 | 1.27 | |||
| 21*3 | 1.345 | |||
| 22*2 | 0.996 | |||
| 22*2.5 | 1.214 | |||
Price list
| Stainless Steel 201 Tube Price List | ASTM A240 Type 201 Tube FOB Shanghai Per Unit (USD) | |||||||
| 2mm 201 stainless steel Tube | $1500.00-$2000.00 | |||||||
| ss 201 mirror Stainless Steel Tube | $1500.00-$2000.00 | |||||||
| 201 Stainless Steel Pipe / Stainless Steel Tube 201 | $1500.00-$2000.00 | |||||||
| Standard size 1′ metal sus 201 grade stainless steel checkered Tube prices | $1500.00-$2000.00 | |||||||
