202 Stainless steel Tube manufacturer
The 202 stainless steel pipe belongs to the 200 series, which
was developed in the early stage to replace the 18-8 type
chromium-nickel austenitic stainless steel with manganese
and nitro-nickel.
18-8 Cr-Ni stainless steel 301, 302,
304(including 321) accounted for more than 50% of the total
output of stainless steel
202 Stainless steel tube Price in China ,Manufacturer of 202 Stainless Steel tube
Environment-friendly stainless steel includes seamless pipe,
industrial pipe, precision pipe, capillary pipe, sanitary
pipe, stainless steel welded pipe, decorative pipe, square
pipe, moment pipe, etc.
Stainless steel pipe in a variety
of industrial applications in the automotive
industry/petrochemical industry including fertilizer
industry/water and gas and other fluid transport/equipment
manufacturing demand analysis
202 stainless steel is widely used in building decoration,
municipal engineering, highway guardrail, hotel facilities,
shopping malls, glass handrails, public facilities and other
places.
It is made of high precision automatic pipe
making equipment, through its own corrosion and dissolution
welding, roll forming, without any metal filling, filled
with gas protection (inside and outside of the pipe)
welding, welding method is TIG process, and online solid
solution eddy current flaw detection.
Equivalent Material of 202 Stainless Steel Tube
| Grade | UNS No. | Old British | Euronorm | China GB | Japanese JIS | ||
| BS | EN | No. | Name | ||||
| 202 | S202 | 202S15 | 1.4372 | 1Cr18Mn8Ni5N | SUS202 | ||
Standard Specification Of ASTM A240 Type 202 Tube
| Specifications | ASTM A240 / ASME SA240 | ||||||
| Thickness | 0.5mm-100mm | ||||||
| Outer diameter | 10mm, 25.4mm, 38.1mm, 50.8mm, 100mm, 250mm, 300mm, 350mm, etc | ||||||
| Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc | ||||||
| Surface | 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sand blast, Brush, etching, etc | ||||||
| Finish | Hot rolled (HR), Cold rolled Tube (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) | ||||||
| Form | Round tube Square tube Rectangular tube etc. | ||||||
202 Ruond Tube Composition and Mechanical Characteristics
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
| 202 | Min. Max. |
/ 0.15 |
7.5 10.0 |
/ 1.0 |
/ 0.06 |
/ 0.030 |
17.00 19.00 |
/ | 4.0 6.0 |
/ 0.25 |
| Grade | Tensile
Strength (MPa) |
Yield Strength 0.2% Proof (MPa) |
Elongation (% in 50mm) |
Hardness | |
| Rockwell B (HR B) |
Brinell (HB) |
||||
| 202 | 520 | 275 | 55 | 95 | 207 |

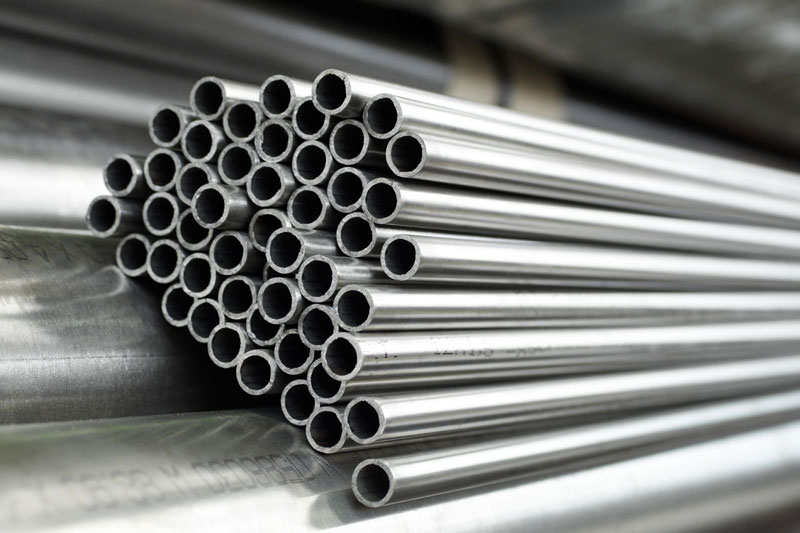

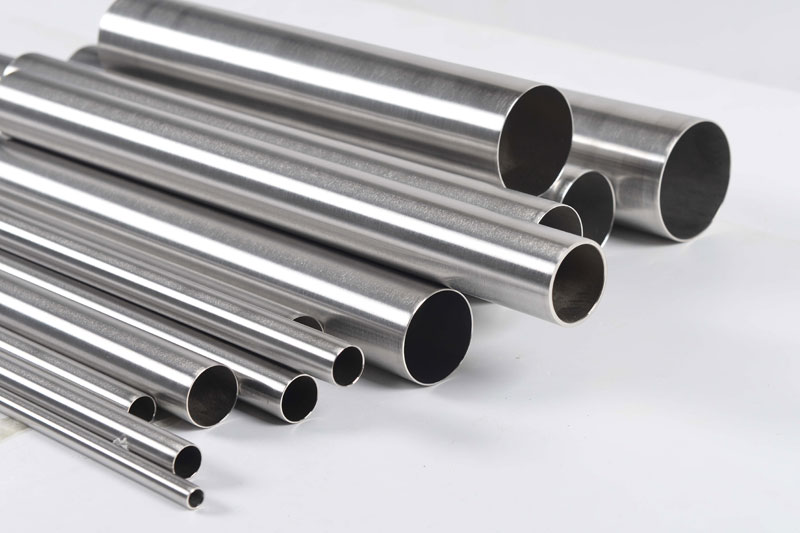

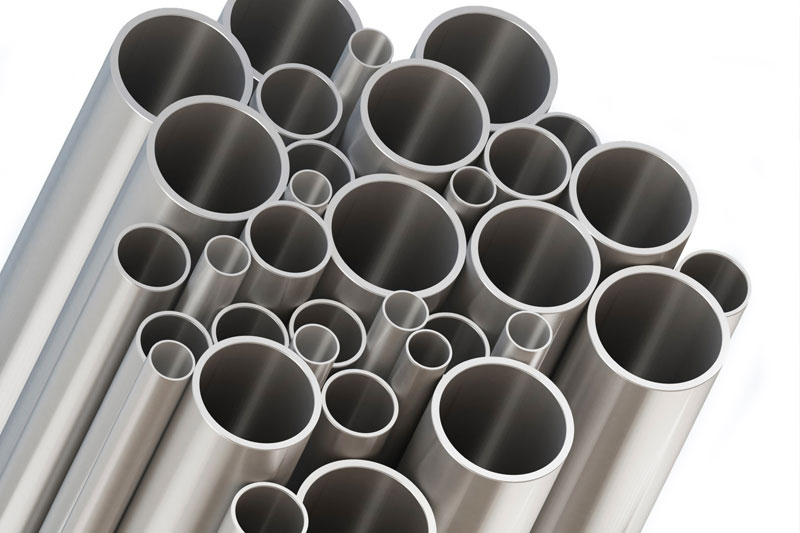

Common Types Of 202 Stainless steel Tube
-
202 Stainless steel Tube
-
202 Stainless steel Tube
-
202 Stainless steel Tube
Dimensions Standard,weight chart and size schedules of 202 stainless steel Tube
| SS 202 Tube Size（mm) | SS202 Tube Weight per Unit Area（kg/m） | |||
| 6*1 | 0.125 | |||
| 6*1.5 | 0.168 | |||
| 8*1 | 0.174 | |||
| 8*1.5 | 0.243 | |||
| 10*1 | 0.224 | |||
| 10*1.5 | 0.318 | |||
| 12*1 | 0.274 | |||
| 12*1.5 | 0.392 | |||
| 12*2 | 0.498 | |||
| 14*1 | 0.324 | |||
| 14*2 | 0.598 | |||
| 14*3 | 0.822 | |||
| 16*2 | 0.697 | |||
| 16*3 | 0.971 | |||
| 17*3 | 1.046 | |||
| 18*1 | 0.423 | |||
| 18*1.5 | 0.617 | |||
| 18*2 | 0.797 | |||
| 18*3 | 1.121 | |||
| 20*1 | 0.473 | |||
| 20*2 | 0.897 | |||
| 20*3 | 1.27 | |||
| 21*3 | 1.345 | |||
| 22*2 | 0.996 | |||
| 22*2.5 | 1.214 | |||
Price list
| Stainless Steel 202 Tube Price List | ASTM A240 Type 202 Tube FOB Shanghai Per Unit (USD) | |||||||
| 2mm 202 stainless steel Tube | $1500.00-$2000.00 | |||||||
| ss 202 mirror Stainless Steel Tube | $1500.00-$2000.00 | |||||||
| 202 Stainless Steel Pipe / Stainless Steel Tube 202 | $1500.00-$2000.00 | |||||||
| Standard size 1′ metal sus 202 grade stainless steel checkered Tube prices | $1500.00-$2000.00 | |||||||
