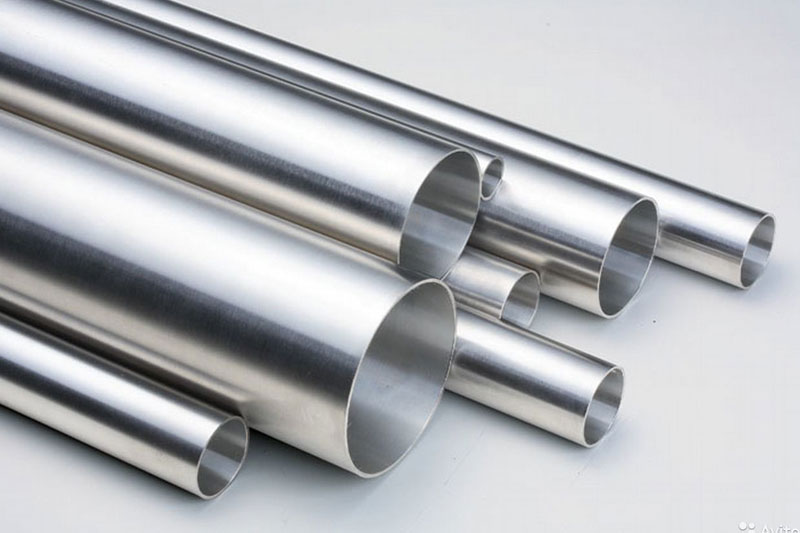

310S Stainless steel Tube manufacturer
310S stainless steel is austenitic chromium-nickel stainless steel, has good oxidation resistance, corrosion resistance, high temperature resistance, because of the higher percentage of chromium and nickel, making it has much better creep strength, can continue to work at high temperature, has good high temperature resistance.
310S Stainless steel tube Price in China ,Manufacturer of 310S Stainless Steel tube
Stainless Steel 310S Pipe is made up of a chromium nickel alloy and is equal strength to the 304 grade pipes but with higher corrosion resistance and oxidation resistance. The material has carbon, manganese, silicon, phosphorus, sulfur and 24% chromium and 19% nickel minimum in the composition. The 310S Stainless Steel Welded Pipe as well as seamless pipes are used in a variety of industrial applications.
The ASTM A312 TP310S ERW Pipe can also come in round, square, rectangular and hydraulic forms. The pipes can be seamless, welded, electric fusion welded and electric resistance welded. The making procedures differ for each of them. The Stainless Steel DIN 1.4436 EFW Pipes are used in general corrosive services, high temperature applications, high pressure applications and domestic services as well.
Equivalent Material of 310S Stainless Steel Tube
| Grade | UNS No. | Old British | Euronorm | China GB | Japanese JIS | ||
| BS | EN | No. | Name | ||||
| 310S | S310S00 | 310SS15 | 1.4951 | 0Cr25Ni20 | SUS310S | ||
Standard Specification Of ASTM A240 Type 310S Tube
| Specifications | ASTM A240 / ASME SA240 | ||||||
| Thickness | 0.5mm-100mm | ||||||
| Outer diameter | 10mm, 25.4mm, 38.1mm, 50.8mm, 100mm, 250mm, 300mm, 350mm, etc | ||||||
| Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc | ||||||
| Surface | 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sand blast, Brush, etching, etc | ||||||
| Finish | Hot rolled (HR), Cold rolled Tube (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) | ||||||
| Form | Round tube Square tube Rectangular tube etc. | ||||||
310S Ruond Tube Composition and Mechanical Characteristics
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
| 310S | Min. Max. |
/ 0.08 |
/ 2.0 |
/ 1.5 |
/ 0.035 |
/ 0.030 |
24.00 26.00 |
/ | 19 22 |
/ |
| Grade | Tensile
Strength (MPa) |
Yield Strength 0.2% Proof (MPa) |
Elongation (% in 50mm) |
Hardness | |
| Rockwell B (HR B) |
Brinell (HB) |
||||
| 310S | 520 | 205 | 40 | 90 | 187 |
Common Types Of 310S Stainless steel Tube
-
310S Stainless steel Tube
-
310S Stainless steel Tube
-
310S Stainless steel Tube
Dimensions Standard,weight chart and size schedules of 310S stainless steel Tube
| SS 310S Tube Size（mm) | SS310S Tube Weight per Unit Area（kg/m） | |||
| 6*1 | 0.125 | |||
| 6*1.5 | 0.168 | |||
| 8*1 | 0.174 | |||
| 8*1.5 | 0.243 | |||
| 10*1 | 0.224 | |||
| 10*1.5 | 0.318 | |||
| 12*1 | 0.274 | |||
| 12*1.5 | 0.392 | |||
| 12*2 | 0.498 | |||
| 14*1 | 0.324 | |||
| 14*2 | 0.598 | |||
| 14*3 | 0.822 | |||
| 16*2 | 0.697 | |||
| 16*3 | 0.971 | |||
| 17*3 | 1.046 | |||
| 18*1 | 0.423 | |||
| 18*1.5 | 0.617 | |||
| 18*2 | 0.797 | |||
| 18*3 | 1.121 | |||
| 20*1 | 0.473 | |||
| 20*2 | 0.897 | |||
| 20*3 | 1.27 | |||
| 21*3 | 1.345 | |||
| 22*2 | 0.996 | |||
| 22*2.5 | 1.214 | |||
Price list
| Stainless Steel 310S Tube Price List | ASTM A240 Type 310S Tube FOB Shanghai Per Unit (USD) | |||||||
| 2mm 310S stainless steel Tube | $2500.00-$3000.00 | |||||||
| ss 310S mirror Stainless Steel Tube | $2500.00-$3000.00 | |||||||
| 310S Stainless Steel Pipe / Stainless Steel Tube 310S | $2200.00-$3200.00 | |||||||
| Standard size 1′ metal sus 310S grade stainless steel checkered Tube prices | $2200.00-$3000.00 | |||||||
