440C Stainless steel tube manufacturer
440C steel is a martensiform stainless steel.
Carbon
content of 1.0%, chromium content 16-18%.
Anti-rust
ability is strong, is the high quality stainless
steel.
Scope of application: It is mainly used to
manufacture bearing parts which work in corrosive
environment and strong oxidation atmosphere without
lubrication.
440C has good high temperature dimensional
stability, so it can also be used as corrosion resistant
high temperature bearing steel.
In addition, it can also
be used to manufacture high quality cutting tools, such as
medical scalpels, scissors, nozzles, bearings, etc.
The
440C has a low ability to withstand dynamic loads
440C Stainless steel tube Price in China ,Manufacturer of 440C Stainless Steel tube
It is mainly used to manufacture bearing parts which work in
corrosive environment and strong oxidation atmosphere
without lubrication.
440C has good high temperature
dimensional stability, so it can also be used as corrosion
resistant high temperature bearing steel.
In addition, it
can also be used to manufacture high quality cutting tools,
such as medical scalpels, scissors, nozzles, bearings,
etc.
440F: it is a kind of steel to improve the easy
cutting performance of 440C steel. It is used for automatic
lathes and ordinary alloy steel. It has the characteristic
of hardening through quenching.
The 440C has a low
ability to withstand dynamic loads.
Generally, the goods are delivered in the heat treatment
state, and the heat treatment type is specified in the
contract.
If not indicated, delivery shall be made
without heat treatment
Equivalent Material of 440C Stainless Steel tube
| Grade | Euronorm | Japanese JIS | |
| No. | |||
| 440C | 1.4125 | SUS440C | |
Standard Specification Of 440C tube
| Thickness | 0.5mm-100mm | ||||||
| Outer diameter | 10mm, 25.4mm, 38.1mm, 50.8mm, 100mm, 250mm, 300mm, 350mm, etc | ||||||
| Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc | ||||||
| Surface | 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sand blast, Brush, etching, etc | ||||||
| Finish | Hot rolled (HR), Cold rolled Tube (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) | ||||||
| Form | Round tube Square tube Rectangular tube etc. | ||||||
440C stainless steel composition content.
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
| 440C | Min. Max. |
0.95～1.20 | ≤1.00 | ≤1.00 | ≤0.035 | ≤0.03 | 16.00～18.00 | / | ≤0.60 | |
Hardness: Annealing,≤269HB;
Quenching
tempering,≥58HRC
Mechanical properties:
Internal
stress (250 N/mm2)
Tensile strength (560 N/mm2)
EL
(18%), HB (250).

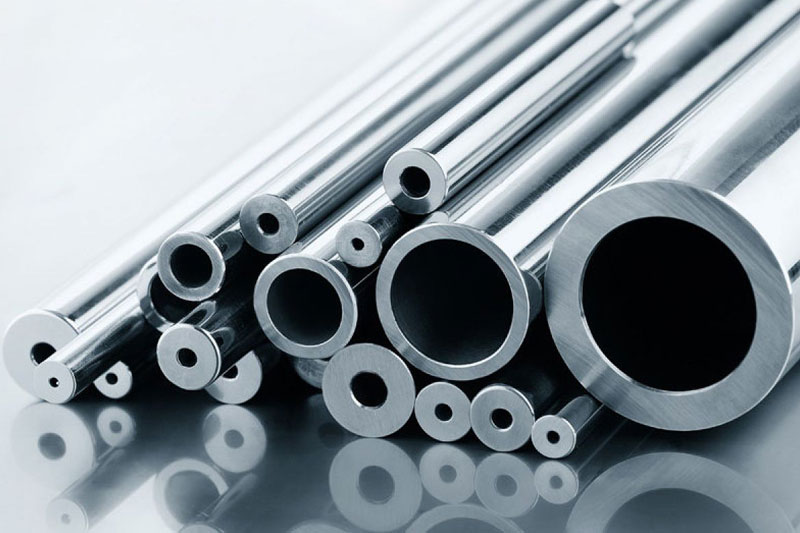

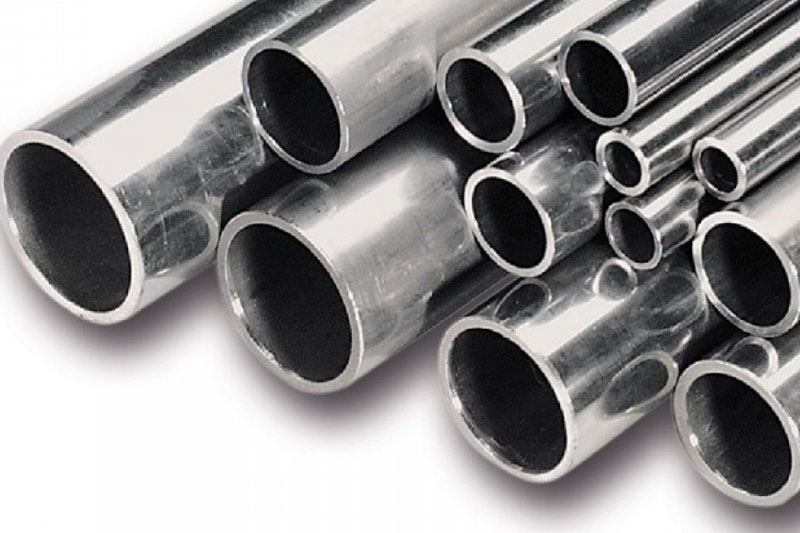

Common Types Of 440C Stainless steel tube
-
440C Stainless steel tube
-
440C Stainless steel tube
-
440C Stainless steel tube
Dimensions Standard,weight chart and size schedules of 440C stainless steel Tube
| SS 440C Tube Size（mm) | SS440C Tube Weight per Unit Area（kg/m） | |||
| 6*1 | 0.125 | |||
| 6*1.5 | 0.168 | |||
| 8*1 | 0.174 | |||
| 8*1.5 | 0.243 | |||
| 10*1 | 0.224 | |||
| 10*1.5 | 0.318 | |||
| 12*1 | 0.274 | |||
| 12*1.5 | 0.392 | |||
| 12*2 | 0.498 | |||
| 14*1 | 0.324 | |||
| 14*2 | 0.598 | |||
| 14*3 | 0.822 | |||
| 16*2 | 0.697 | |||
| 16*3 | 0.971 | |||
| 17*3 | 1.046 | |||
| 18*1 | 0.423 | |||
| 18*1.5 | 0.617 | |||
| 18*2 | 0.797 | |||
| 18*3 | 1.121 | |||
| 20*1 | 0.473 | |||
| 20*2 | 0.897 | |||
| 20*3 | 1.27 | |||
| 21*3 | 1.345 | |||
| 22*2 | 0.996 | |||
| 22*2.5 | 1.214 | |||
Price list
| Stainless Steel 440C tube Price List | 440Ctube FOB Shanghai Per Unit (USD) | |||||||
| 2mm 440C stainless steel tube | $1500.00-$2000.00 | |||||||
| ss 440C mirror Stainless Steel Coil/ Strip/ tube | $1800.00-$2300.00 | |||||||
| 440C Stainless Steel tube / Stainless Steel tube 440C | $1500.00-$2000.00 | |||||||
| Standard size metal sus 440C grade stainless steel tube prices | $1500.00-$2000.00 | |||||||
